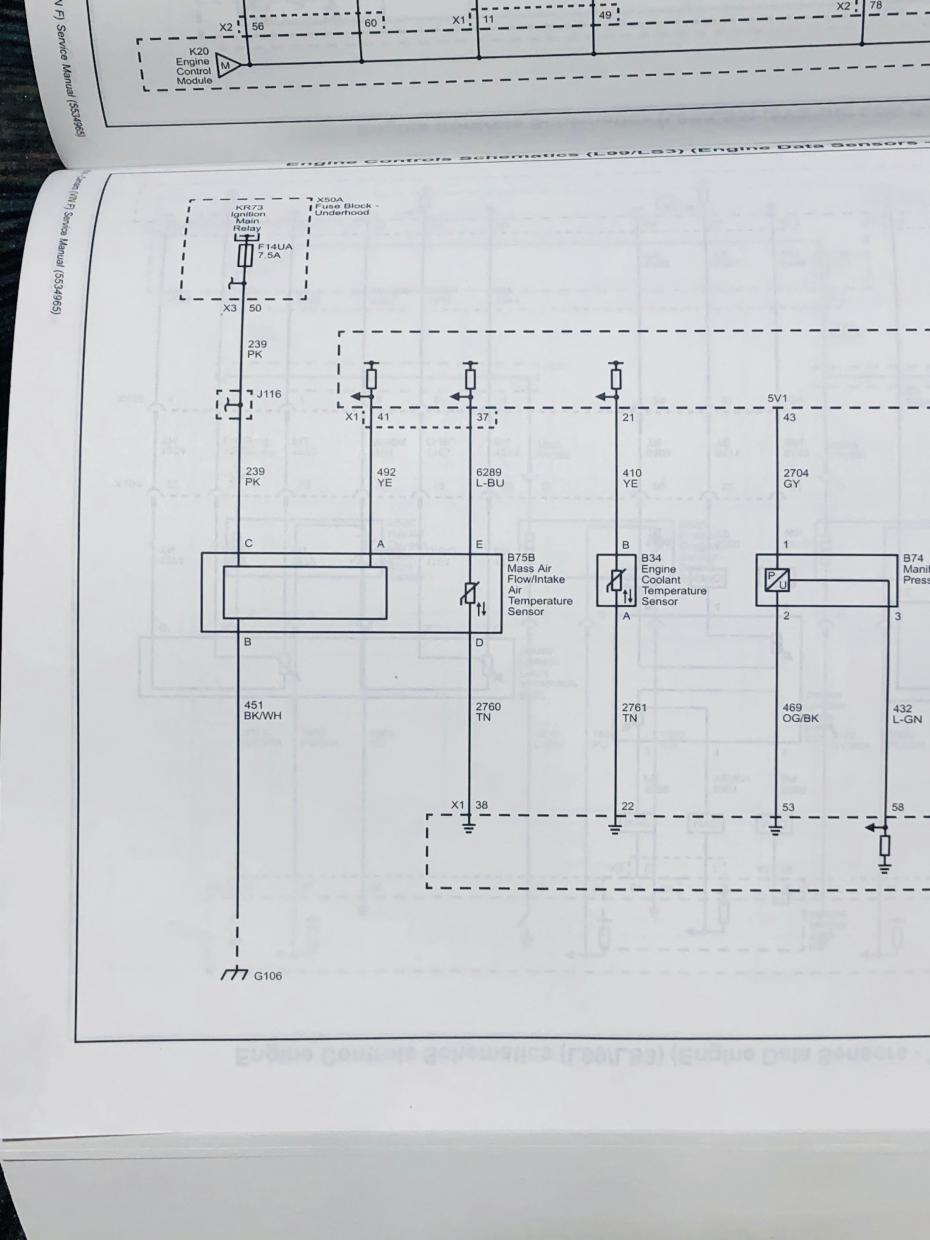

Looking for pictures of wiring diagram for maf. Im looking for wiring diagram for a japenese import for. The 2001 setup combines the maf and iat into one unit and rather than having 2 wiring connectors there is one 5 pin setup. Car obd2 tools global supplier. A yel 492 mass air flow (maf) sensor signal b blk/wht 451 ground c pnk 539 ignition feed. I need a wiring diagram for a 2008 ford f150 maf sensor wiring diagram maf sensor ford f 150 question. Ls1 pcm wire harnes blue green. Maf sensor wiring diagram 19971998 1999 ford 46l 54l. Answered by a verified ford mechanic. I can not find a wiring diagram to find the pin out for the sensor. Download this great ebook and read the ls1 fan wiring diagram ebook. I need the color coded wiring diagram for the bank 1 sensor 1 o2 sensor connector on the vehicle side. Learn how this device is connected to the ecm and vehicle electronics in general.
The 2001 setup combines the maf and iat into one unit and rather than having 2 wiring connectors there is one 5 pin setup. A yel 492 mass air flow (maf) sensor signal b blk/wht 451 ground c pnk 539 ignition feed. Does anyone have a diagram for this. Alternator reverse lockout vss sensor chassis ground. Your psi ls1 fuel injection harness.
Maft Pro Wiring Diagrams Staged Wiring Diagrams Use Only Those Specific To Your Installation Preliminaries 1 Powering The Maft Pro Via Acc And Ign More Information Is Available Here Step 1 Wiring The Maft Pro To The Ecu Non Turbo 1a Toyota from www.fadingworld.com Maf sensor wiring diagram 19971998 1999 ford 46l 54l. This is a brief summary of the performance test of lexus mass air flow sensor that you'll be performing in this article. On my '05 awp, this is the wiring for my maf: Subaru wiring diagram color codes. You can't find this ebook anywhere online. 00 impreza tcu wiring diagram needed. For those who have a windows computer. Does anyone have a diagram for this.
00 impreza tcu wiring diagram needed. Diagram saturn ls1 engine diagram 20 awe balance in sports de u2022 vortec 485360 wiring harness info unmodified 01 truck harness labels for injectors coils knock sensors holley efi 558102 ls16 24x1x, chevythunder com 1999 2002 ls1 schematics fuel injectors air pump and iac charging system. I can not find a wiring diagram to find the pin out for the sensor. Maf sensor wiring diagram 19971998 1999 ford 46l 54l. Ground ok so i have a 2002 1.8t awp, which one's the ground wire and which ones the maf 5v signal. A yel 492 mass air flow (maf) sensor signal b blk/wht 451 ground c pnk 539 ignition feed. The sensors have at least three wires, 12v supply, ground (sensor ground return) and signal to the. 5 wire mass air flow sensor 24 extension connector pigtail wiring gm ls1 ls2 ls6 fits the following and many more not listed: Does anyone know the pins? Subaru wiring diagram color codes. The 5 wire ls1 maf wiring diagram works out to these five values: Pin b is the switched power wire, that should come from the pink eng sen fuse or efi relay. The lt blured wire outputs the maf signal to the pcm.

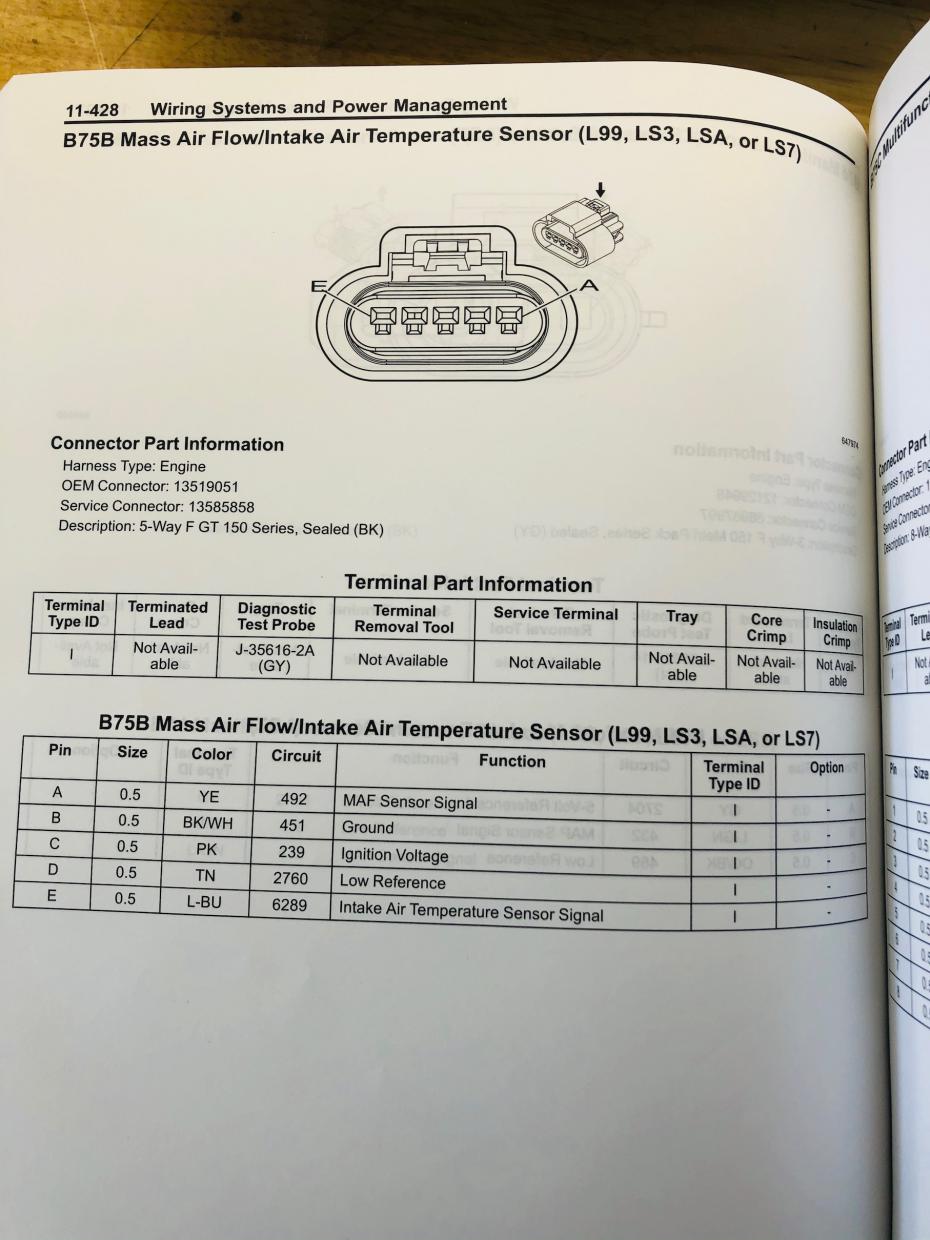

Select this if you want to attach bare wire to bare wire. Answered by a verified ford mechanic. Pin b is the switched power wire, that should come from the pink eng sen fuse or efi relay. I can not find a wiring diagram to find the pin out for the sensor. Pin a maf output is the main pin you'll want to test for maf errors.
